HL-AH G6 Amalgamator
Description:

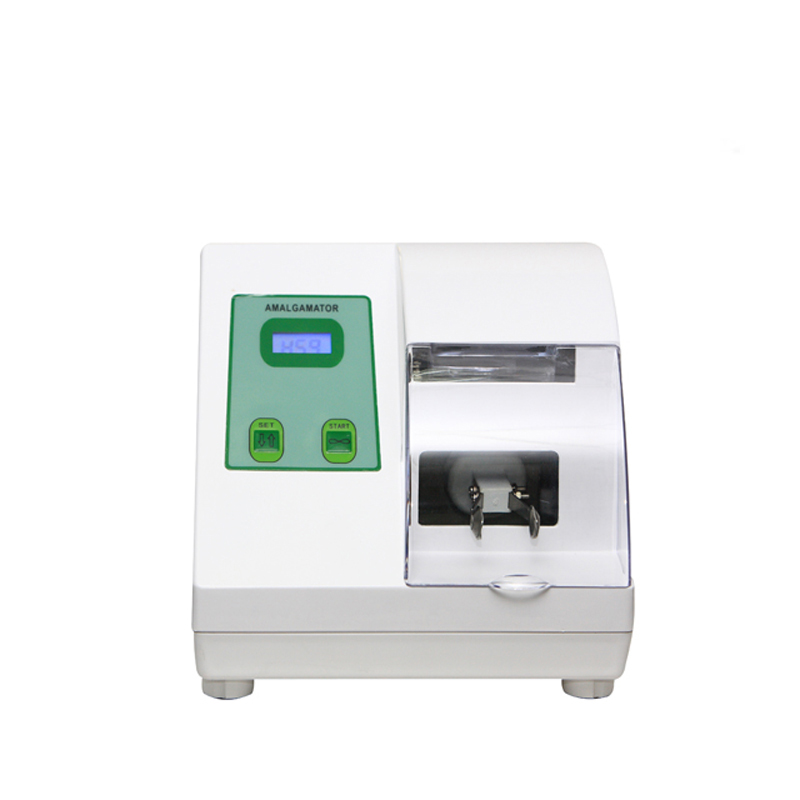

Product name :  HL-AH G6 Amalgamator

Model:HL-AH(G6)

Brand :  Zoneray

1.Introduction

Model HL-AH G6 Amalgamator, which controlled by a microprocessor to ensure a precise, controlled, consistent mix. With two working speed (High speed >=4200rpm, Low speed: 2800rpm), can adjust working time from 4S to 60S. It is suitable for all the capsule and glass ionomer sold in the market. For safe operation, the motor will stop, when the mask is open. It can satisfy different customers’ requirements.

2.Feature:
1. Time setting with memory function.
2. Security Guard design, motor will stop when the mask is open.
3. Noiseless, Stable operation, Electrical safety standard met.
4. Automatic alarm to remind, Easy maintenance.

3.Technical Date:

Power voltage: AC 220V, 50HZ or AC 110V, 60HZ
Motor power: 40W
Blending speed: High speed: 4200rpm; Low speed: 2800rpm
Range of timing: 4S~60S
Noise level: less than 65db (A)
Gross weight: 2.6kg
Size: 285*245*225mm

4.Name of Parts and Operation Detail







Operation:

1) Turn on the switch and press the black switch at rear device, the screen is light.

2) Choose high and low speed according to the specific capsule. Steps of switching the two kinds of speed: press start and time-setting buttons together, when the screen shows "H", it means high speed (amalgam capsule corresponds with high speed); press the two buttons again; it changed into "L" which stands for low speed.

3) Set the blending time. Press the setting button shortly, the time increases 2 seconds; press it for a long time, the time increases to needed time quickly.(the highest time is 60 seconds, then it recycles to 4 seconds )and the timer is memorable.(eg. 004 stands for 4 seconds and 060 stands for 60 seconds).

4) Open the mask, put the capsule into the clip and then close the mask. (To ensure safety, the device will beep on error instead of working while the mask is open,) this setup has applied for national patent successfully, the number is ZL 2005 2 0014942.1.

5) Press start/stop, the device runs, meanwhile, the screen shows the time which is decreasing accordingly until the time is over with beeping and the device stop working automatically.

6) Turn off the device and detach the capsule, the blending is ok.

Suggestion on the time of blending capsule.

Brand

To take GK amalgam capsule for an example ( Ag43% Sn32% Cu25%

Specifications of amalgam capsule

GK alloy powders 200mg

GK alloy powders 400mg

GK alloy powders 600mg

GK alloy powders 800mg

Recommended time

12S∽16S

12S∽16S

12S∽18S

16S∽20S



After-sale Services

One years warranty. (Caution: forks, tensions springs, damper springs are not in the warranty list.)



Our Strength Of Amalgamator

Now in Chinese dental market, only our amalgamator can mixer all the capsules sold in the world, especially the one with pocket outside the mercury.
